DROP TOP

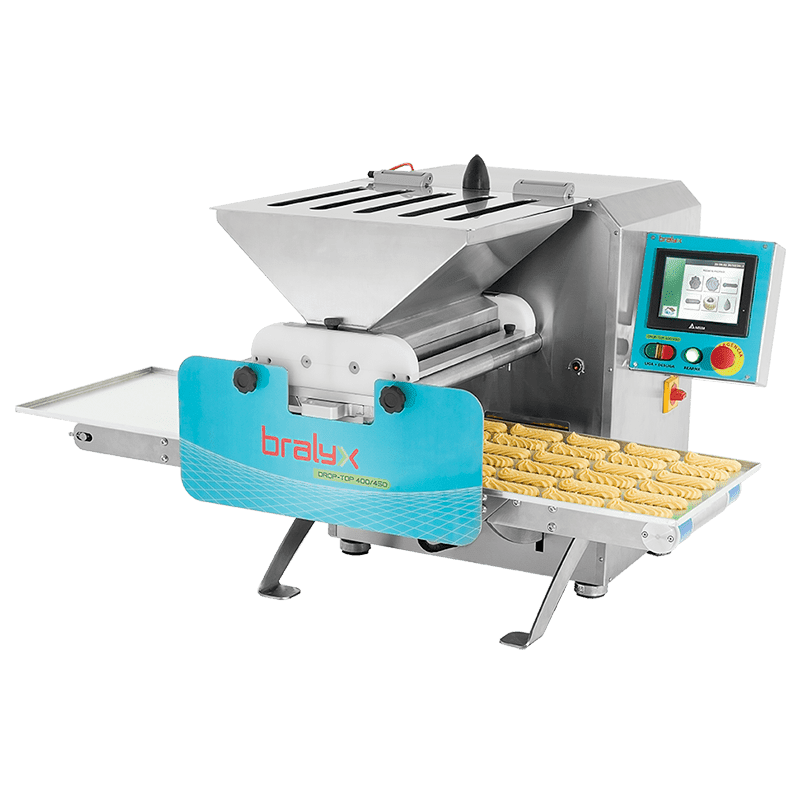

DROP TOP Multifunctional Machine for Confectionery and Biscuits
  • interchangeable accessories
  • Depositing system (drip) for dense masses
  • Wire cutting system for hard doughs such as biscuits and cheese bread
  • Dosing system for semi-liquid and fluid doughs (muffin, sponge cake, etc.)
  • ENCODER system for automatic calculation of the distance between products and tray spaces
  • 7” touch screen panel with capacity for 50 easy-to-program recipes
  • Quick cleaning: easily dismantled rollers, stamps and nozzles
  • On the machine, the tray size, the space to be used and the number of columns desired are programmable (in-line dosing of six nozzles).
Technical specifications
  • SPEED¹: up to 20 to 25 cycles per minute or  one dose per secondPRODUCT SIZE: 180g
    Dimensions (W x W x H): 984 x 1127 x 876mm
    Tray dimensions:  400 x 600 x 11.5mm
    Consumption: 0.8kW (1CV) - 220V - Mono
    Approx Weight: 198kg/ 436.5lb.
  • Manufactured by Bralyx with the most modern technology and a high level of automation, the DROP-TOP 400/450 PLUS is the complete version of the line and brings together the depositing (drip), dosing and wire cutting systems .
